Structure

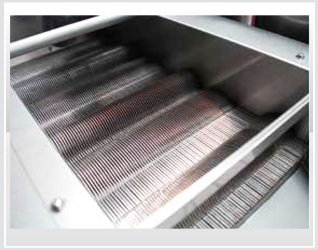

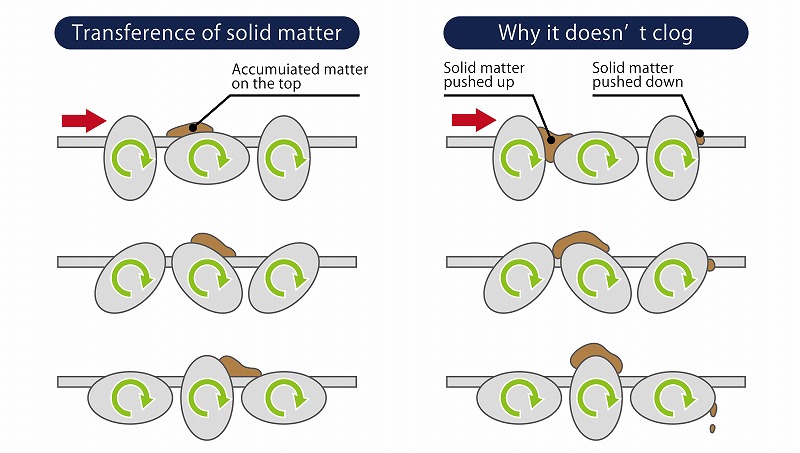

A solid-liquid mixtures is poured into the upper section of the machine and the movement of contiguously placed oval plates separates the solids from the liquids. Additionally, through the continuous rotation of multiple oval plates between the slits, the separated solid is transferred while the innovative design prevents the slits from clogging.






Standard specifications list



¢£SS-300Model

Number of
oval plate rows
Nominal treatment
width(mm)
Effective
width(mm)
Flitration area
(m2)
Treatment ca
pacity(kg-ds/hr)
Dimensions
(mm)
6 300 286 0.133 26.6 W570-L688-H400
8 300 286 0.177 35.4 W570-L842-H400
10 300 286 0.221 44.2 W570-L996-H400
2 300 286 0.265 53 W570-L1150-H400

¢£SS-400Model

Number of
oval plate rows
Nominal treatment
width(mm)
Effective
width(mm)
Flitration area
(m2)
Treatment ca
pacity(kg-ds/hr)
Dimensions
(mm)
8 400 386 0.239 47.8 W670-L842-H400
10 400 386 0.298 59.6 W670-L996-H400
12 400 386 0.357 71.5 W670-L1150-H400

¢£SS-500Model

Number of
oval plate rows
Nominal treatment
width(mm)
Effective
width(mm)
Flitration area
(m2)
Treatment ca
pacity(kg-ds/hr)
Dimensions
(mm)
10 500 486 0.375 75 W770-L996-H400
12 500 486 0.45 90 W770-L1150-H400
16 500 486 0.525 105 W770-L1304-H400

¢£SS-600Model

Number of
oval plate rows
Nominal treatment
width(mm)
Effective
width(mm)
Flitration area
(m2)
Treatment ca
pacity(kg-ds/hr)
Dimensions
(mm)
10 600 586 0.452 90.4 W870-L996-H400
12 600 586 0.543 108.6 W870-L1150-H400
16 600 586 0.633 126.6 W870-L1304-H400
18 600 586 0.723 144.7 W870-L1458-H400
